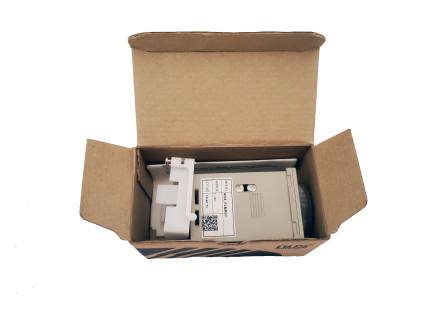

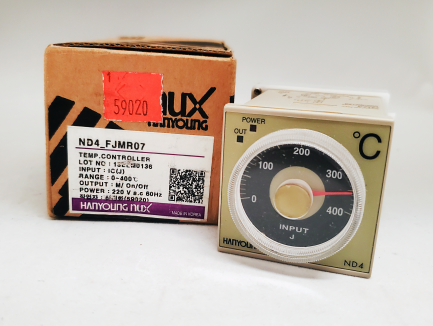

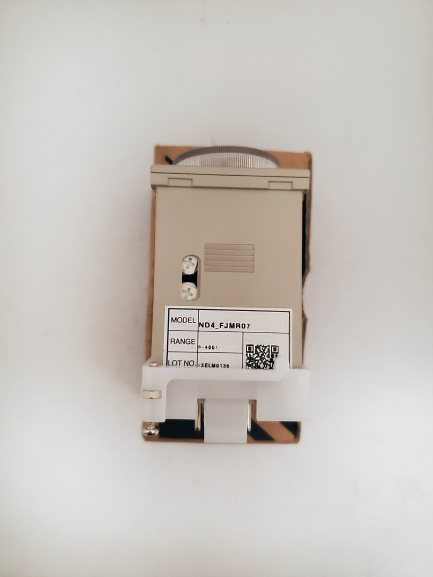

ND4-FJMR07 HANYOUNG Analog Temperature Controller

$45.00

  • ND4-FJMR07 HANYOUNG Analog Temperature Controller
  • New
  • Original

1 in stock

SKU: ND4-FJMR07 Category: Tags: , , , , , , , ,
  • Dimension: 48 X 48 X 80mm (Width X Height X Depth)
  • Control type: ON / OFF control (2 position control)
  • Input: J thermocouple
  • Control output: Relay
  • Control action: Reverse action (heating control)
  • Range code: Select the standard gamma code
  • Inlet type Scope (ºC)
  • K, Pt100 Ω 0 ~ 400
  • Power voltage: 110/220 Va.c (50/60 Hz)
  • Power consumption: 2 VA
  • Input: Thermocouple: K, J. R.T.D: Pt100Ω (IEC751)
  • Control output: Relay contact; 250 Va.c (resistive load)
  • Control action: Proportional or ON / OFF control
  • Allowable input resistance: Thermocouple: Max 100Ω, R.T.D: Max 10Ω / wire
  • Adjustment: Analog adjustment
  • Indication precision setting: ± 1.0% of F.S
  • Proportional band: 1 ~ 10% of F.S (HY-4500) (HY-4700, HY-5000 set at 3% of F.S)
  • Proportional cycle: Relay contact; 25 ~ 30 sec.
  • Dielectric strength: 2,000 V 50/60 Hz for 1 minute (Primary terminal-secondary terminal)
  • Vibration: Resistance to malfunction; 2 – 55 Hz X. Y . Z each position for 10 minutes
  • Mechanical durability; 10-55 Hz, 0.76 mm, X. Y . Z each for 2 hours
  • Shock: Resistance to malfunction; 100 m / s2 6 positions, each 3 times (Approx. 10 G)
  • Mechanical durability; 300 m / s2 6 positions, each 3 times (Approx. 30 G)
  • Life: Mechanical; Min. 10 million times (Relay type)
  • Electrical; Min. 0.3 million times (Relay type)
  • Ambient temperature and humidity: 0 ~ 50 ºC (32 ~ 122 ºF) .35 ~ 85% R.H. (no condensation)
