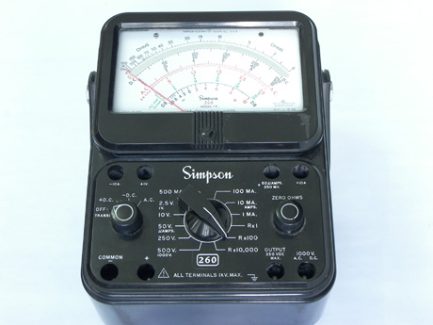

SIMPSON ANALOG MULTIMETER 260

SIMPSON ANALOG MULTIMETER 260

VOLTAGE DC:

Range:

250mV, 1V, 25V, 10V, 25V, 50V, 250V, 500V, 1000V

Accuracy 2%  * sensitivity 20K per volt

VOLTAGE AC:

Range:

2.5V, 10V, 25V, 50V, 250V, 500V, 1000V

Accuracy  3% scale *

Voltage 1000V (AC o DC), máx.

DB

5 range -20 a 50 dB * Reference 0 dB = 1 mW a 600Ω

 DC CURRENT:

Range:

50uA, 1mA, 10mA, 500mA, l00mA, 10A

Accuracy 1,5% of full-scale 5OμA, 2.0% of full scale, all others

Dip Voltage:

(Nominal) 250mV en 50uA, 1mA, 10mA en 255mV, 300mV en 10A 100mA, 500mA 500mV

RESISTANCE:

Range:

RX 1, Rx 100, Rx 10K

Max Values:

0-2KΩ, 0-200Ω, 0-20 mW
