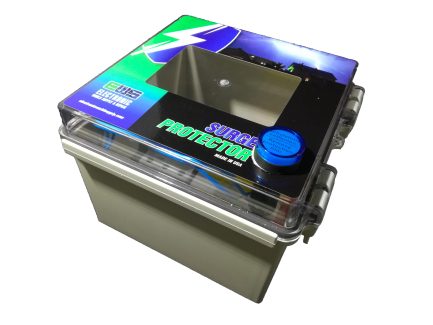

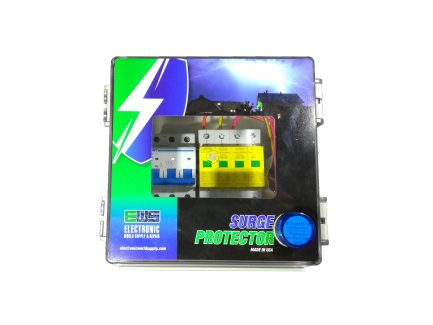

EWS48PSA

$600.00

  • Surge Suppressor 4 Poles Features
SKU: EWS48PSA surge suppressor Category: Tags: , , , , , , ,
Description
  • TYPEGM-20
  • Protection Class: B
  • Response Time: < 25ns
  • Leakage current: ≤20μA
  • Max.Continuous Operating Voltage (Uc): 440VAC
  • Nominal Discharge Current (8/20μs) (In): 10KA
  • Max. Discharge Current (8/20μs) (Imax.): 20KA
  • Voltage Protection Level( Up):  ≤1.5KV
  • indicate deterioration: green(normal),red(malfunction)
  • Protection Mode: L-PE,N-PE (1P, 2P,3P,3P+N)
  • Material of Outer Shell: Flame retardant materials
